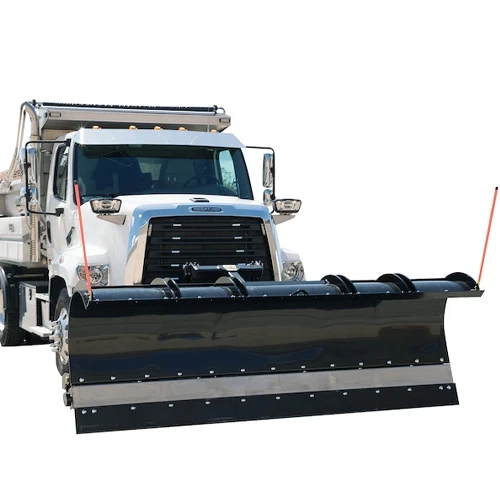

SuperJ Municipal Snow Plow
A high speed urban and interstate plow.
Buyers Products SnowDogg® SuperJ™ Municipal Snow Plow is a reversible J-plow designed for urban and high speed interstate use. The pronounced J-shaped curve of the blade helps control the snow to maintain driver visibility even in intense plowing conditions. The 47.5 in. tall moldboard pivots 35° from bulldoze position to provide superior control over where the snow is thrown. You can switch your discharge direction on-the-fly between driver side and passenger side, giving you the ability to rapidly adjust to different plowing conditions.
The SuperJ's fully boxed A-frame works with the full width push bar and nitrided outboard cylinders to provide a powerful push and spread impact force. This design also keeps the plow close to the truck for a tight turning radius and reduced strain on the vehicle's front axle. The standard 2-point telescoping chain lift (with attachment point for optional 3-point lift) provides a level lift for smooth, precise plow control. A 3-position attack angle adjusts from 5° to 20° to handle a variety of plowing conditions. The 4 in. by 4 in. by 3/4 in. bottom angle and torsion trip edge protect your equipment from manholes and other hidden obstacles. A sturdy 3 in. king pin features a manganese bronze bushing and grease fitting for easy maintenance.
The SuperJ is available in 10, 11, and 12 foot lengths with a carbon steel, 304 stainless steel, or UHMW polycarbonate moldboard. Mounting the plow on your truck is easy with the swivel plate attachment.
The SuperJ's fully boxed A-frame works with the full width push bar and nitrided outboard cylinders to provide a powerful push and spread impact force. This design also keeps the plow close to the truck for a tight turning radius and reduced strain on the vehicle's front axle. The standard 2-point telescoping chain lift (with attachment point for optional 3-point lift) provides a level lift for smooth, precise plow control. A 3-position attack angle adjusts from 5° to 20° to handle a variety of plowing conditions. The 4 in. by 4 in. by 3/4 in. bottom angle and torsion trip edge protect your equipment from manholes and other hidden obstacles. A sturdy 3 in. king pin features a manganese bronze bushing and grease fitting for easy maintenance.
The SuperJ is available in 10, 11, and 12 foot lengths with a carbon steel, 304 stainless steel, or UHMW polycarbonate moldboard. Mounting the plow on your truck is easy with the swivel plate attachment.
Features:
• Ideal for both high speed interstates and city streets.
• Pronounced J-shaped curl in the blade keeps snow close to the road to maintain driver visibility.
• Full width 4 in. by 4 in. by 3/8 in. push tube provides rigidity and strength.
• Angle and reverse with power with the 3 in. by 16 in. nitrided outboard cylinders
• Fully boxed A-frame design keeps the plow close to the truck for a tight turning radius and reduced front axle strain.
• Manganese bronze bushing for king pin is long lasting and easy to service.
• Torsion trip edge design with 8 moldboard-to-push-frame pivot points protects equipment from hidden curbs, manholes, and other obstacles.
• Three position attack angle adjusts from 5 to 20° to tackle a variety of plowing conditions.
• Pronounced J-shaped curl in the blade keeps snow close to the road to maintain driver visibility.
• Full width 4 in. by 4 in. by 3/8 in. push tube provides rigidity and strength.
• Angle and reverse with power with the 3 in. by 16 in. nitrided outboard cylinders
• Fully boxed A-frame design keeps the plow close to the truck for a tight turning radius and reduced front axle strain.
• Manganese bronze bushing for king pin is long lasting and easy to service.
• Torsion trip edge design with 8 moldboard-to-push-frame pivot points protects equipment from hidden curbs, manholes, and other obstacles.
• Three position attack angle adjusts from 5 to 20° to tackle a variety of plowing conditions.
